VEM

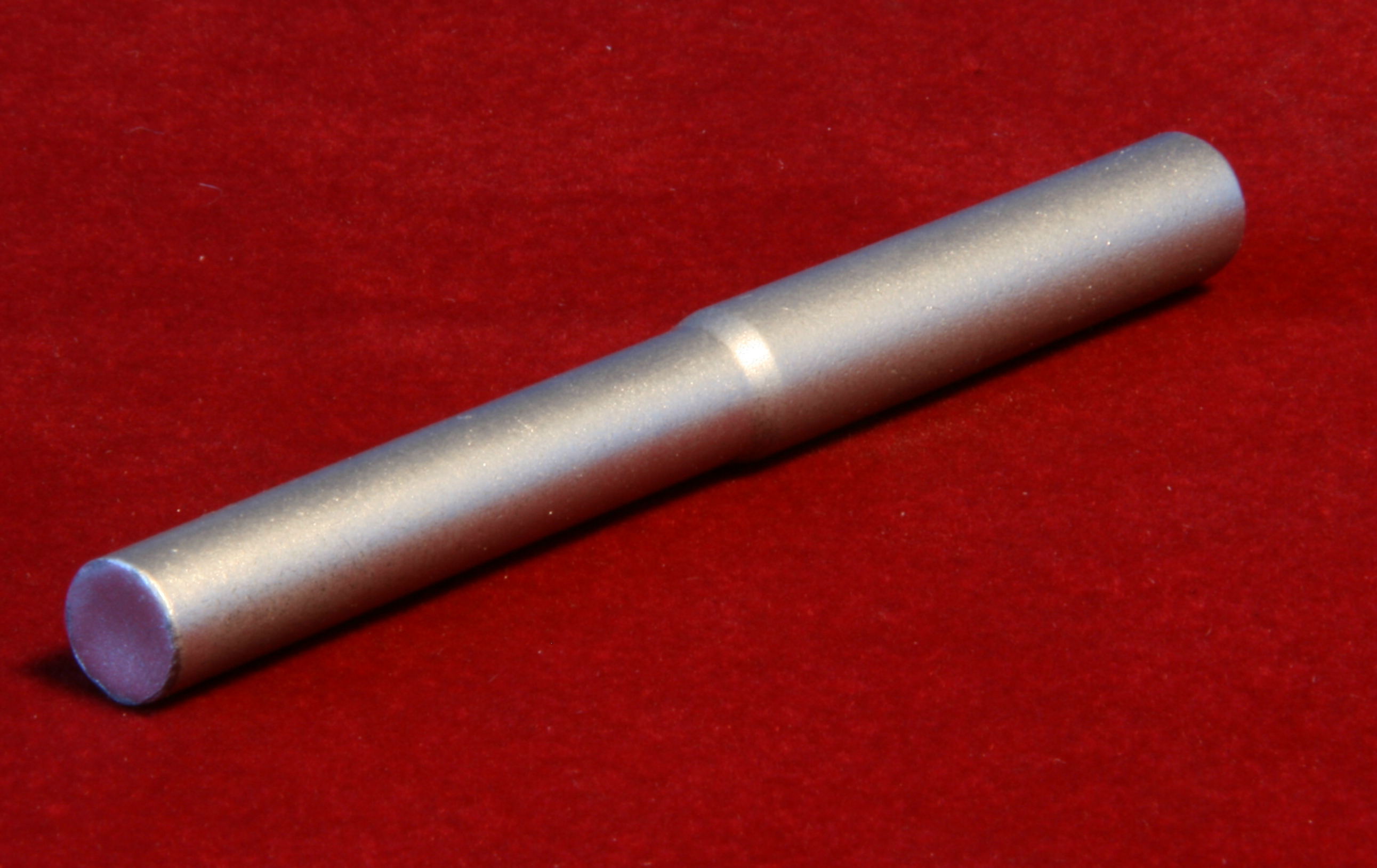

The VEM machines extrude Cold-Drawn and Hot-Rolled (scaled) bars from major diameter to pitch diameter, allowing thread rolling of the bar ends without having to peel or turn the ends or remove the scale.



  • The VEM machines can be either hand fed or equipped with a magazine.

  • Hand fed machines can feed headed parts and long parts as well.

  • The optional magazine can feed and eject short parts and medium length parts.

  • When extruding scaled bars, the extrusion die breaks the scale and extrudes the bars to the pitch diameter, leaving a clean face that results in very good thread quality.

  • Extrusion stroke adjustment is external and takes seconds.

  • The VEM machines are available with higher tonnage ratings for upsetting and heading.  The machines can be supplied with 1 or 2 stations with either open dies and closed dies and heading tonnage up to 400 tons.

  • Fully automatic machines from coil are available up to Ø25mm.

  • The machines are equipped with oil or spray mist that applies extrusion oil around the bars before extruding.





Model (*) & Specifications

VEM-20/40

VEM-30/60

VEM-60/120

VEM-80/160

VEM-100/200

VEM-150/300

Drawn Wire diameter range,
up to 700 N/mm² (100 kpsi)

8-24mm

5/16” - 1”

10-40mm

3/8” - 1½””

12-50mm

1/2” -2”

16-62mm

5/8” - 2½”

19-76mm

3/4” - 3”

25-100mm

1” - 4”

Hot-Rolled Wire diameter range, up to 700 N/mm² (100 kpsi)

8-19mm

5/16” - 3/4”

10-32mm

3/8” - 1¼”

12-40mm

1/2” - 1½”

16-50mm

5/8” - 2”

19-62mm

3/4” - 2½”

25-75mm

1” - 3”

Extrusion stroke

mm

inch

100/150

4”/6”

100/150

4”/6”

150/200

6”/8”

150/200

6”/8”

200

8”

200/250

8”/10”

Minimum length; Hand-Feed

100mm

4”

120mm

5”

120mm

5”

150mm

6”

175mm

7”

200mm

8”

Minimum length with Magazine

50mm

2”

60mm

2¼”

75mm

3”

75mm

3”

100mm

4”

125mm

5”

Maximum length

Per request



































(*) Heading tonnage / Gripping tonnage
